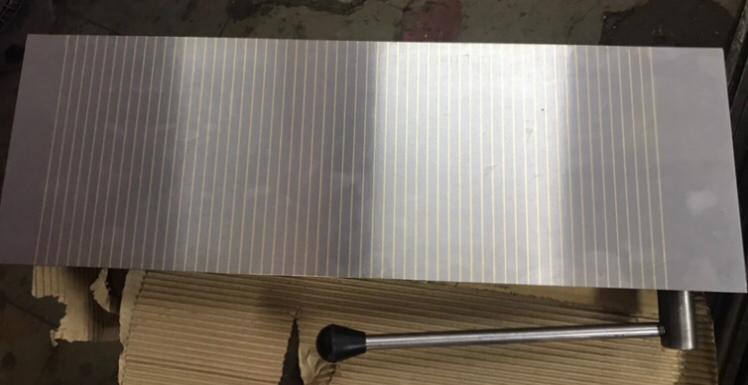

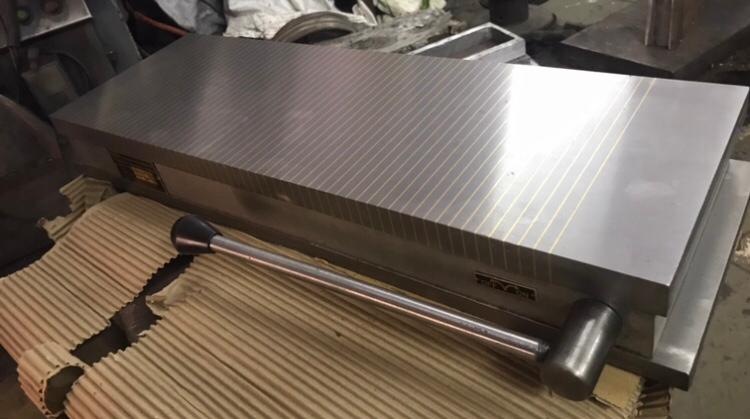

Through Pole Magnetic Chuck
Holding device for surface grinding machine, Tool & cutter grinder, Spark erosion machines & also for light milling.
The working face & bottom face are perfectly parallel.
Assembled with powerful Magnets.
Poles individually magnetized for full loading power.
Magnetic pull is 40-70% more than IS specification.
Bottom plate has suitable extension to clamp on table.
Better magnetic grip due to close poles.
Suitable to hold thin & small jobs.
Easy operated ON-OFF lever.
Sr. No. |
Cat No. |
Size |
Pole Gap (mm) |
Pole Pitch (mm) |
1. |
SMP-2501
|
250 L x 150 W x 65 H | 10+ |
22 |
2. |
SMP-2502
|
300 L x 150 W x 65 H | 10+ |
22 |
3. |
SMP-2503
|
300 L x 200 W x 65 H |
10+ |
22 |
4. |
SMP-2504
|
350 L x 150 W x 65 H |
10+ |
22 |
5. |
SMP-2505
|
400 L x 150 W x 65 H |
10+ |
22 |
6. |
SMP-2506
|
450 L x 150 W x 70 H | 10+ |
22 |
7. |
SMP-2507
|
450 L x 200 W x 70 H | 10+ |
22 |
10. |
SMP-2508
|
500 L x 200 W x 70 H | 10+ |
22 |
9. |
SMP-2509
|
600 L x 200 W x 70 H | 10+ |
22 |
10. |
SMP-2510
|
450 L x 250 W x 70 H | 10+ |
22 |
11. |
SMP-2511
|
450 L x 300 W x 70 H | 10+ |
22 |
12. |
SMP-2512
|
600 L x 250 W x 70 H | 10+ |
22 |
13. |
SMP-2513
|
600 L x300 W x 70 H | 10+ |
22 |
14. |
SMP-2514
|
750 L x 250 W x 70 H | 10+ |
22 |
