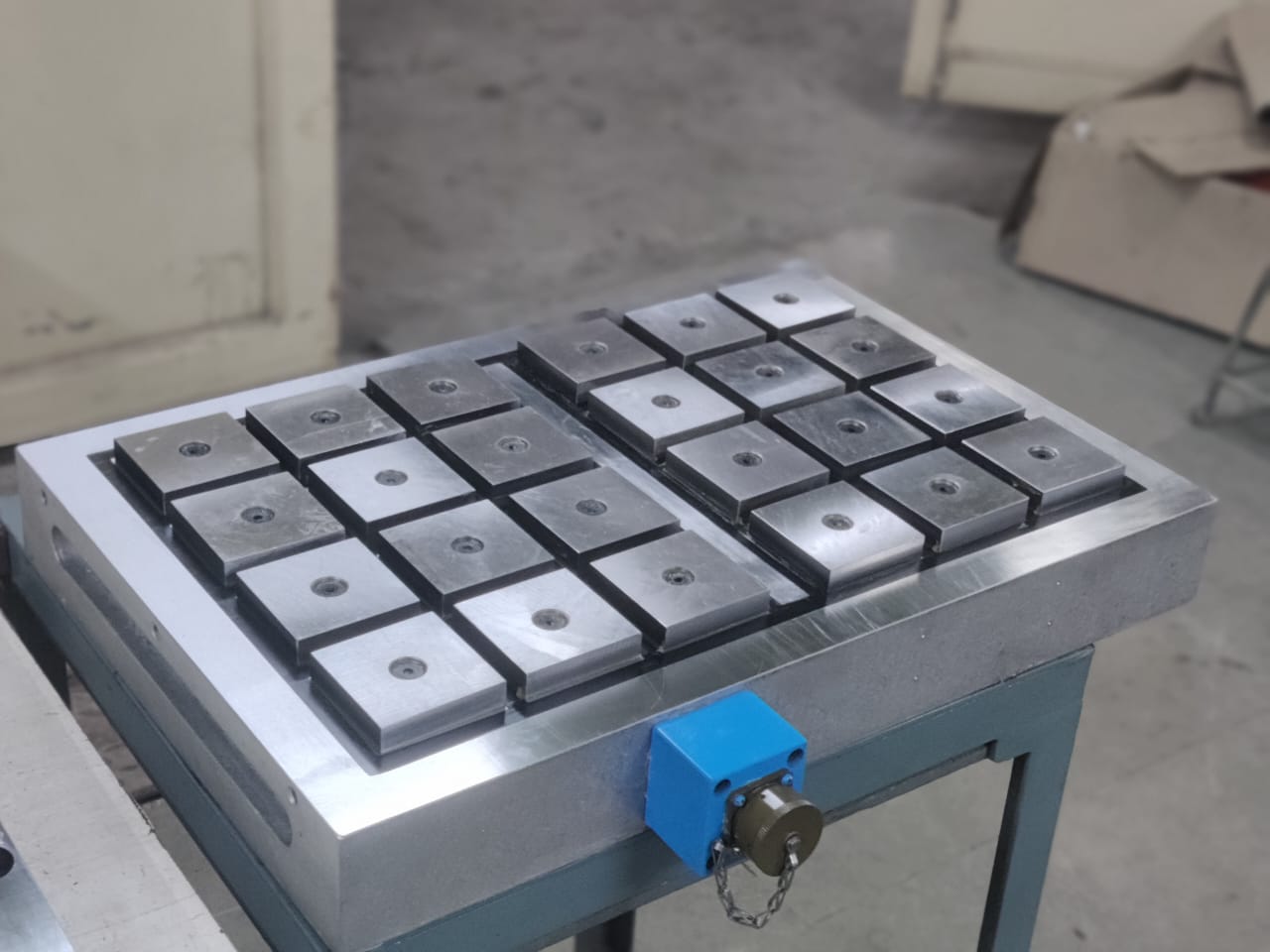

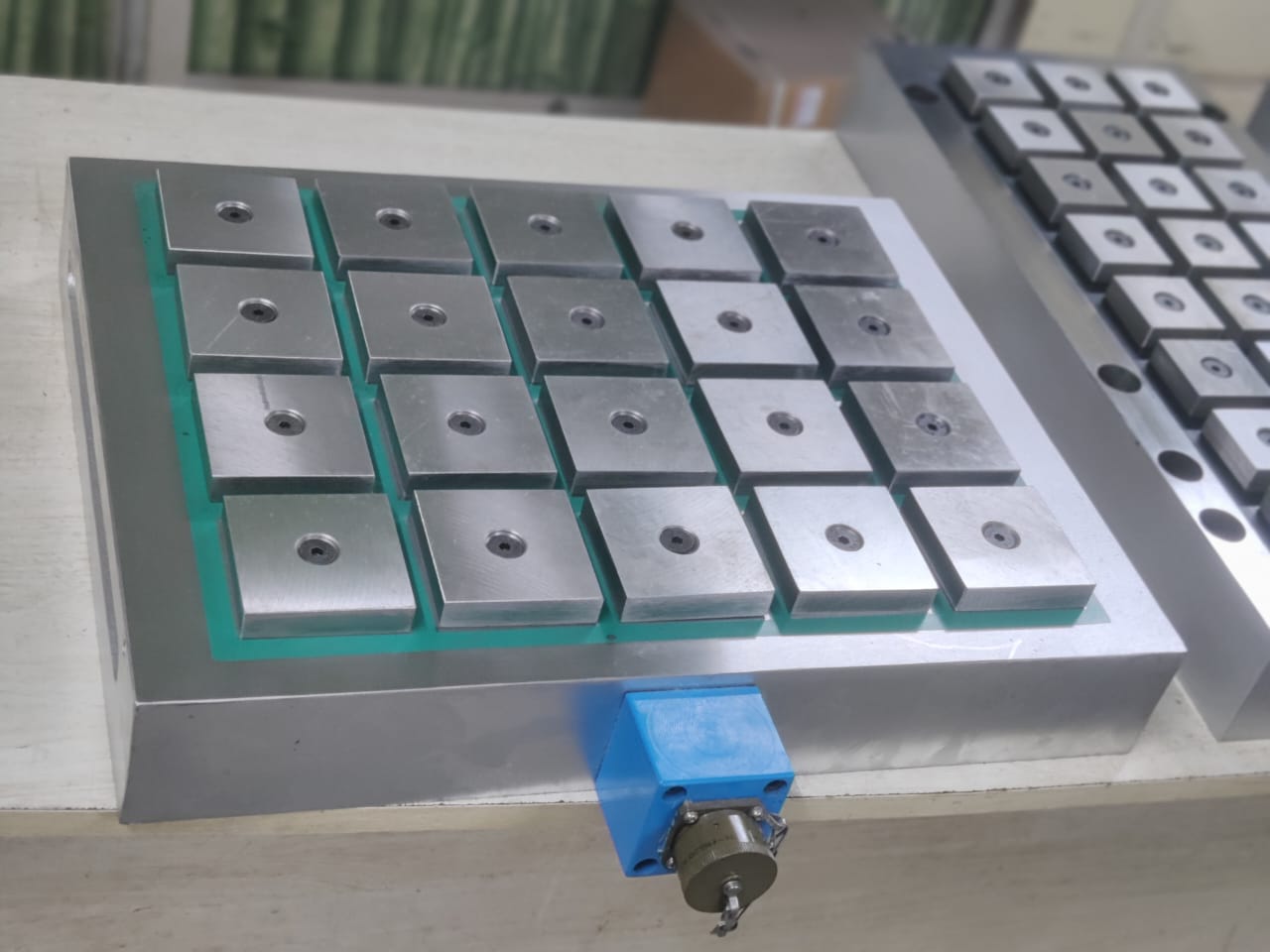

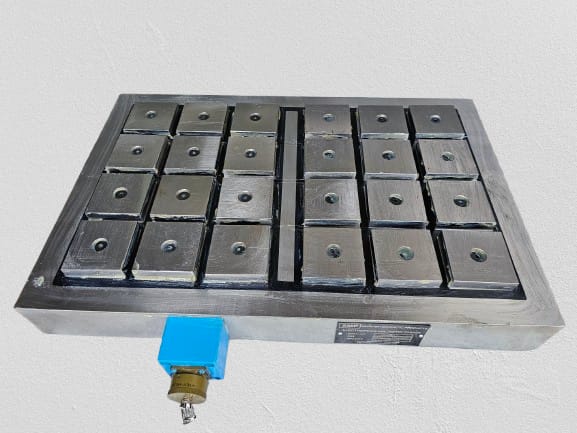

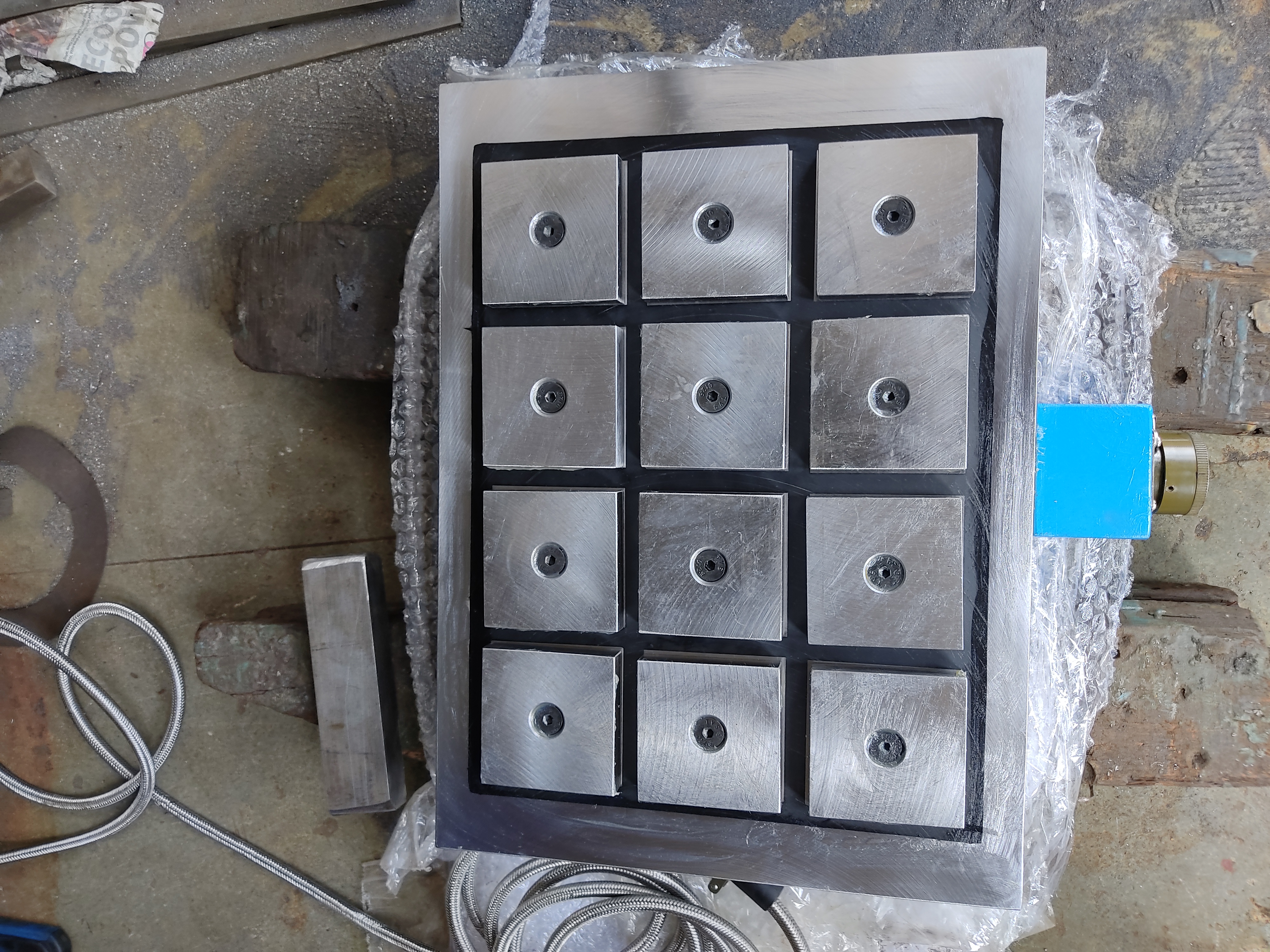

Magnetic Table For VMC

Magnetic Table For VMC

In case of power failure, the Electro Permanent Magnetic Chuck ensures complete safety, as it does not require electricity to remain on.

Cutter movement remains unobstructed during the machining process.

Magnetic power is adjustable to suit specific requirements.

Cutter movement remains unobstructed during the machining process.

Setup time is greatly reduced by the use of magnets.

Machining accuracy is maximized.

The clamping is uniform across the entire surface, eliminating tool chatter and improving both the finish and tool life.
Clamping and de-clamping times in CNC machines are reduced drastically, leading to increased productivity.

Applications:

Electro Permanent Magnetic (EPM) Chucks are highly suitable for heavy-duty milling operations, especially on medium, large, and even rough components.

For proper clamping, at least 4 alternate magnetic poles must come into contact.

The job clamped magnetically should have a minimum thickness of 20 mm.

All five faces of the workpiece can be machined in a single setup when clamped magnetically.

The EPM Chuck integrates easily with pallet-changing and FMS (Flexible Manufacturing Systems).

Pole size : (70mm X 70mm)

Sr. No.	Cat No.	Size (mm)
1.	SMP-8001	600 L x 300 W x 110 H
2.	SMP-8002	750 L x 300 W x 110 H
3.	SMP- 8003	1000 L x 300 W x 110 H
4.	SMP- 8004	1500 L x 300 W x 110 H
5.	SMP- 8005	600 L x 400 W x 110 H
6.	SMP- 8006	750 L x 400 W x 90 H
7.	SMP-8007	1000 L x 400 W x 90 H
8.	SMP-8008	1500 L x 400 W x 90 H
9.	SMP CONTROL UNIT WITH VARIABLE SUPPLY

Pole size : (50mm X 50mm)

Series No.	W	L	No Of Poles	H
SMP-8009	240	590	24	60
SMP-8010	240	750	30	60
SMP-8011	240	870	36	60
SMP-8012	240	990	42	60
SMP-8013	240	430	18	60
SMP-8014	300	300	16	60
SMP-8015	300	430	24	60
SMP-8016	300	590	32	60
SMP-8017	300	750	40	60
SMP-8018	300	870	48	60
SMP-8019	300	990	56	60
SMP-8020	420	590	84	60
SMP-8021	420	430	36	60
SMP-8022	420	590	48	60
SMP-8023	420	870	72	60
SMP-8024	420	1500	132	60
SMP-8025	420	750	60	60
SMP-8026	480	430	42	60
SMP-8027	480	590	56	60
SMP-8028	480	750	70	60
